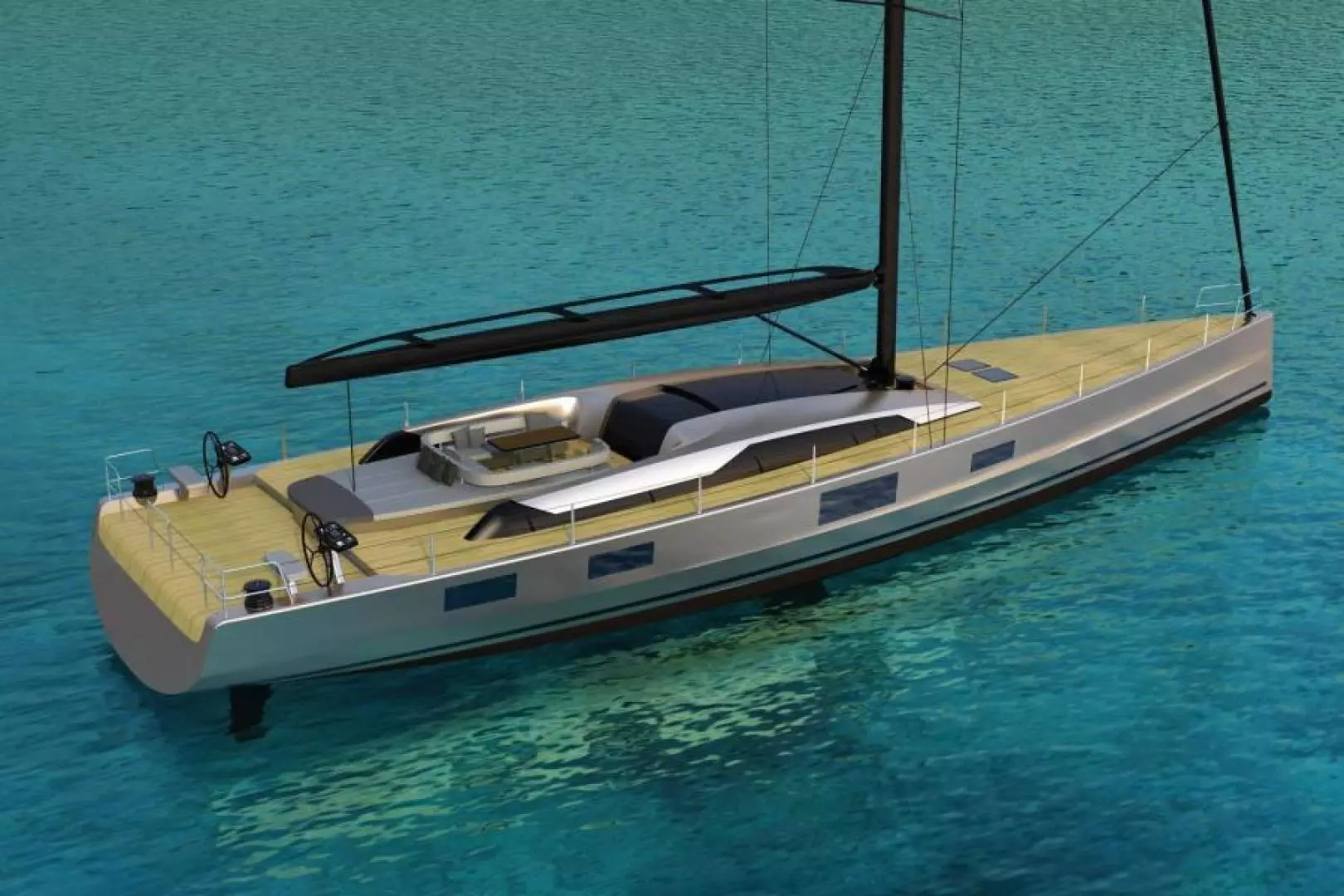

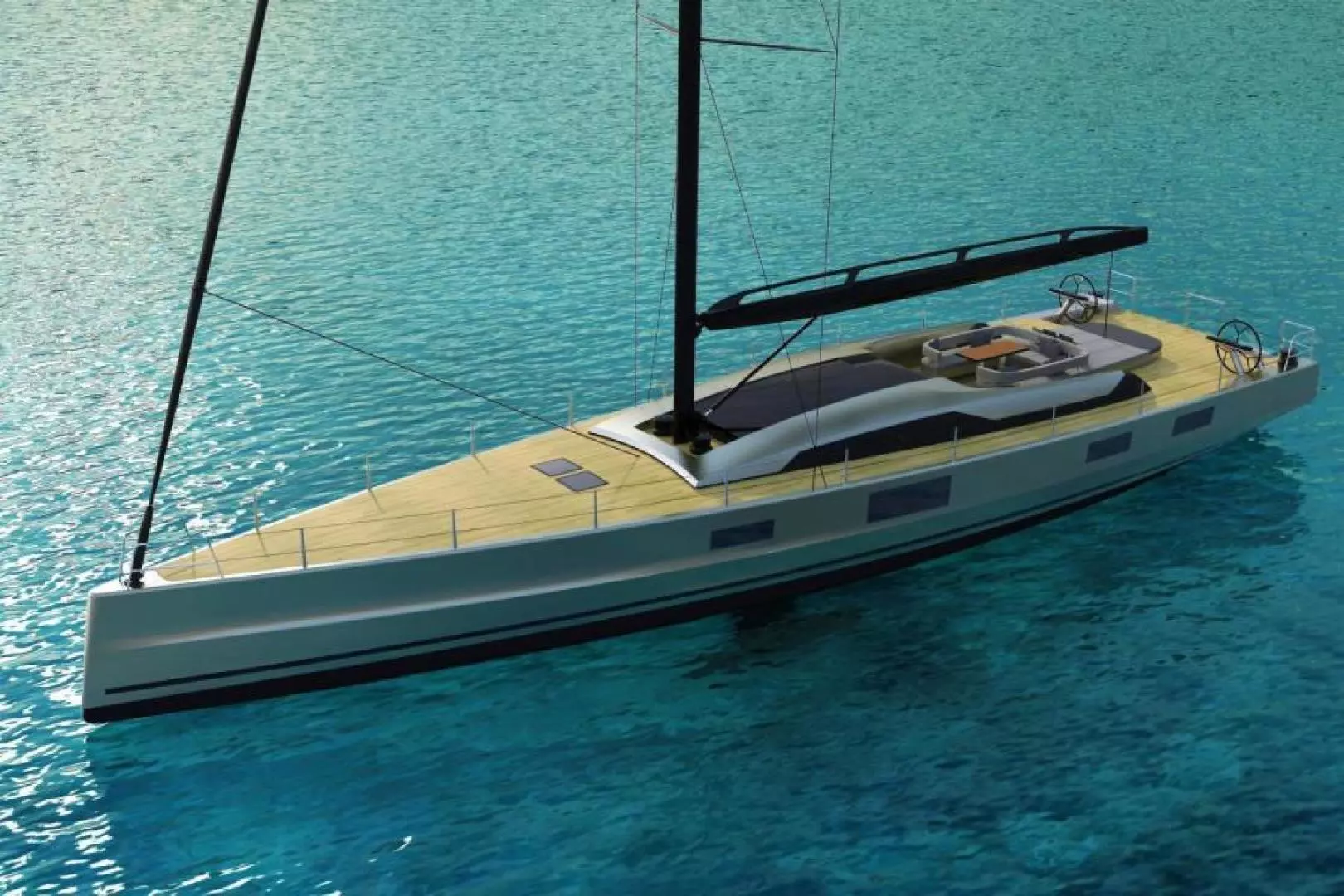

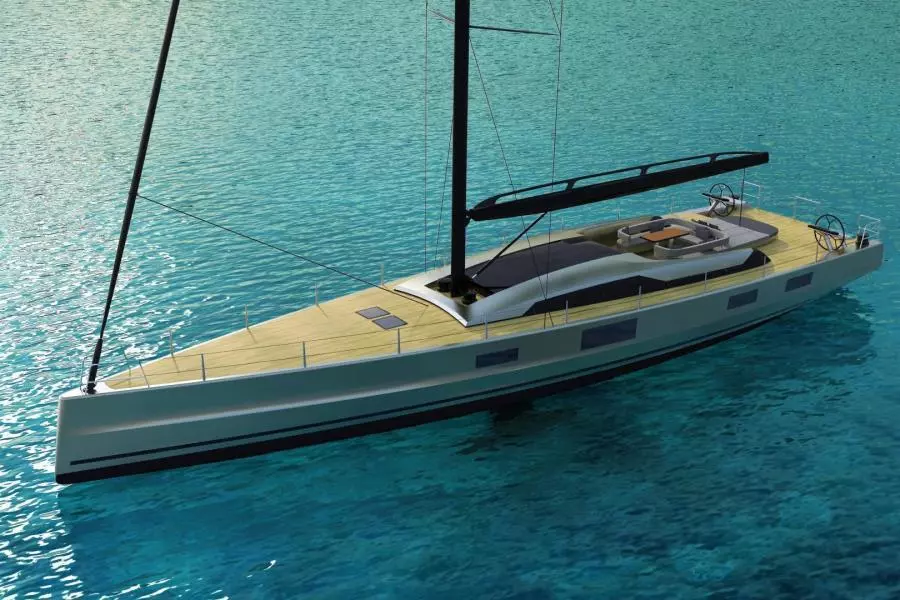

2023 McConaghy Boats 85' _{(25.91 m)} MC85

Equipment & Options Configured to $8.2M USD

McConaghy MC85 MAKARA - Specifications Pricing and Options as Configured 5-2022

Composite Vessel Construction

• Hull, Deck, Cabin top & Structure are built with high performance structural foam cores carbon prepreg
• Carbon Composite strap chain plates will be integrated into the hull structure

Rudder & Steering

Rudder Blade

• Blade rudder vacuum infused resin and carbon fiber

Rudder Stock

• Prepreg carbon autoclaved rudder stocks

Steering Wheels

• McConaghy carbon steering wheels, will be chain sprocket and shaft system

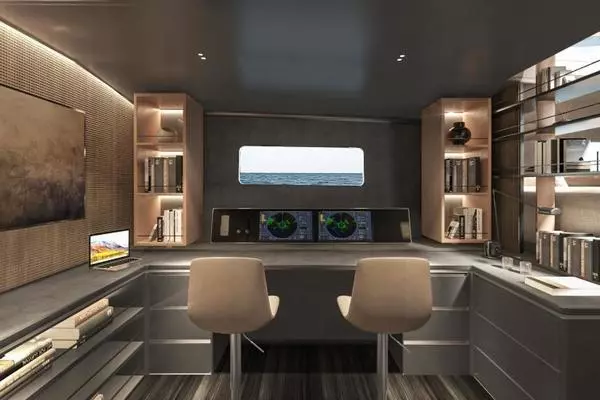

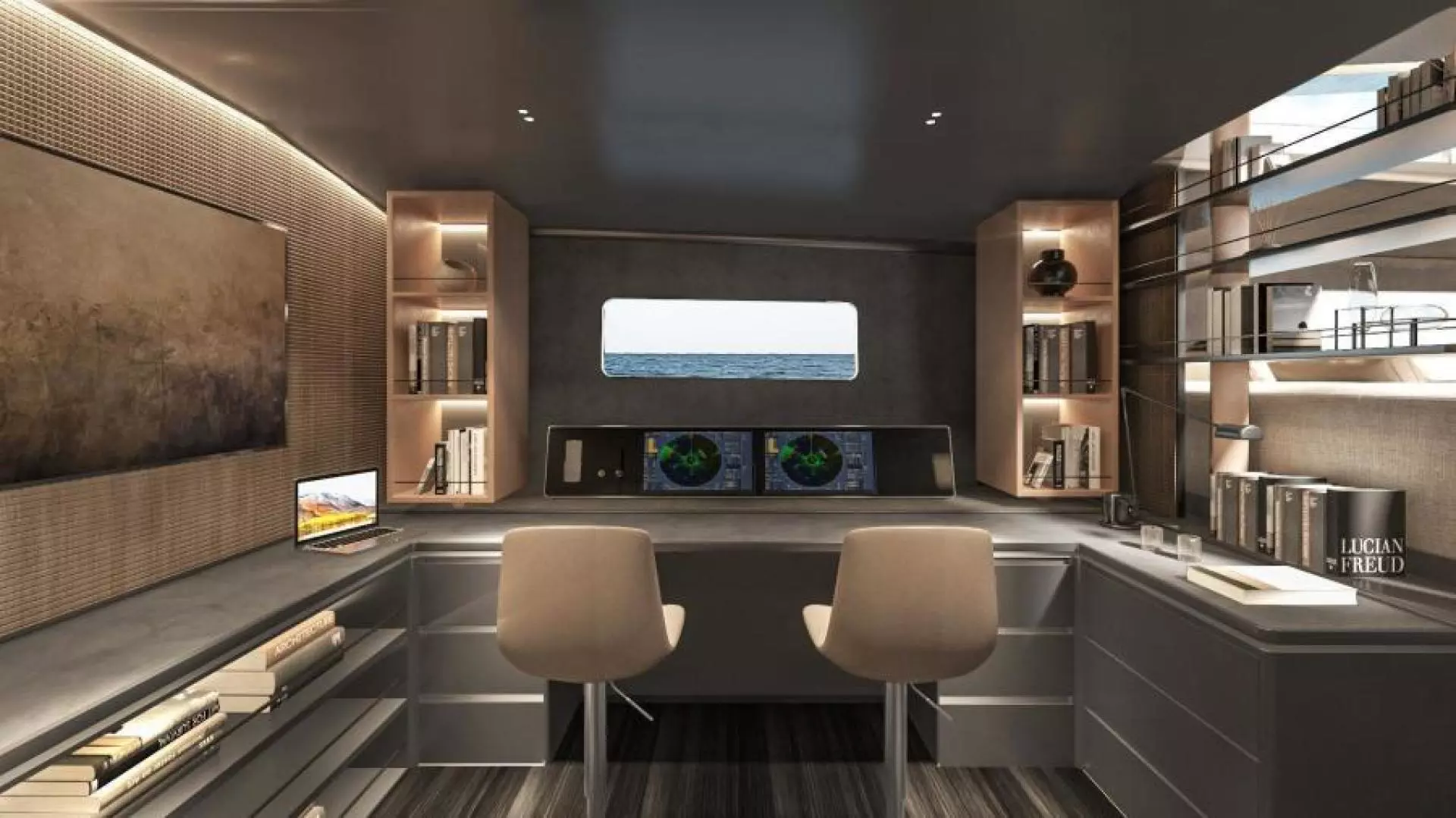

Steering Station

• Fully equipped steering and navigation station with steering wheel helms and, navigation equipment instruments, gauges and controls.

BOWSPRIT

• A Carbon Prepreg Bow sprit with Rod bobstay optional

Deck Hatch Openings

• High standard, custom McConaghy flush hatches, with concealed hinges and lockable latches fitted throughout

Custom Metal Work

• All bright stainless will be all 316L, all high load stainless will be a grade of Aquamet and deck hardware stainless will be A3 or equivalent

Deck Gear Package

• 1 x Magic trim mainsheet traveller
• 1 x Harken captive winch
• 4 x Harken primary winches
• 2 x Harken mast base winches

Stanchions

• If stanchions requires, they will be composite built, as per McConaghy standard

Flexiteak

• The Aft deck, side deck, forward deck, planed teak battens with margin boards

Garage Door

• Stern Lazarette with transom door, allowing for tender dive gear and toy storage. This forms a beautiful beach for swimming and access ladder to main deck.

Mechanical Systems

• Access to the machinery and pumps removable panels are provided to allow service access to all systems, valves, junction boxes, etc
• All vibrating or moving items are, as far as is practical, fitted on anti- vibration mounts.
• All pipes in the machinery space are polished, painted or plastic coated and marked with the system number.
• Pipes are laid out where possible along the centerline under the floor and orthogonally
• Clamps bolted to the structure will support them and in accommodation space they will be isolated from the pipe hangers with nylon, or equivalent, saddles.

Engine Rooms

• Engine room mid ship will be painted and lined with soundproofing
• Delta T fans in engine room with 24V control system
• Two Delta T fire damper systems in one engine room

Tanks (preliminary figure, to be confirmed)

• Fuel Capacity: 3500L
• Fresh Water Capacity: 2000L
• Grey & Black Holding Tank Capacity: 1000L
• Diesel fuel: Vessel to have 2 separate tanks with separate fills for each tank. Transfer systems shall transfer fuel between tanks
• Fresh water tanks: Transfer system between fresh water tanks
• All tanks will be labelled with type and capacities. All tanks shall have inspection access hatches and baffles

Hydraulic Systems

Harken Sailing Hydraulic

• 1 x reverse purchase system ram in boom
• 1 x reverse purchase system self trackers

Hydraulic Mainfolds for Deck Winches

• 1 x Mainfold for Mainsheet
• 1 x Mainfold for Self Tracking Blade
• Boom vang
• Stern Platform
• Four harken winches
• 1 x A sail furler
• 1 x Self tracking jib furler
• 1 x Genoa furler

Central Coast Hydraulic

• 1 x reservoir
• 1 x heat exchanger
• 1 x genset piston pump
• 3 x value bank assembles 8 function each with pressure and flow control
• 4 x logic values pump outlet
• 4 x pump solenoid logic values

Anchoring

• Fore Peak over rotating anchor arm concealed in fore peak hatch 1 x Lewmar V8 windlass
• 1 x CQR 140lbs galvanized bow anchors with 100m of 13mm galv chain
• 1 x manual chain stopper and storm anchor lashing points

Aft Deck Door Equipment & Design

• Saloon aft door: custom, sliding door with glass panels.

 Insulation & Acoustics

• McConaghy will evaluate and design a sound and vibration attenuation system for this vessel, this system will be in-keeping with best practices and industry standards for yachts of this size
• The engine room is isolated from the accommodation areas of the vessel by sound proofing

Electrical

• CZone Digital Switching System including; touch screen, iPad compatible, voltage, tank, bilge and fuse alarms, lighting (switches and dimmers)
• 2 x Mast Combi Pro 24 / 3500-100 inverters

Appliances

• Isotherm Draw freezer 160L
• Isotherm Draw Fridge 190L
• Miele convection oven
• Miele induction hub
• Miele microwave
• 1 x Ice maker
• 1 x Washer and dryer

Spars, Rigging & Sails

Southern Spars Mast

• Mast tube laminate in Standard modulus carbon fibre, with standard modulus spreaders.

Standard Rigging

• Complete Ni50 rod lateral rigging package with stainless steel clamp tangs, seats and miscellaneous fittings to designer’s specifications
• Backstay and Checkstay cables to be K49 Kevlar
• All stays complete with stainless steel end fittings
• All Ni50 rods to be polished finish
• Aft rigging K49 Kevlar cables covered in black plastic jackets
• PBO Staysail Stay and Code sail torsional luff cables to be supplied

Sails by North Sails

• Full Batten Mainsail 3Di OCEAN 700 32,000 Dpi
• Self Tacking Blade 3Di OCEAN 700 35,000 Dpi
• Harken 32mm T track cars, Cunningham, intermediates, battens and toggles
• CTECH Full length battens

Running Rigging

• Running rigging supplied for main and self tacking blade

Options As Configured (Included at $8.2M )

• Upgrade to Nomex core
• A Carbon Prepreg Bow sprit with Rod bobstay
• Tender Winch & Cradle
• Antifoul
• 210kg Bow thruster
• 3 x Harken Electric pop up warping winches
• Deck shower on stern platform
• 150L water maker
• 1 x Under sole custom-built freezer approx. 700L
• 35 Bottles wine fridge
• Ecomar Sewage system
• Boom tent
• Covers for cockpit seat & table
• Covers for helm
• Covers for helm
• 1 x McConaghy carbon toilet
• Head ventilation

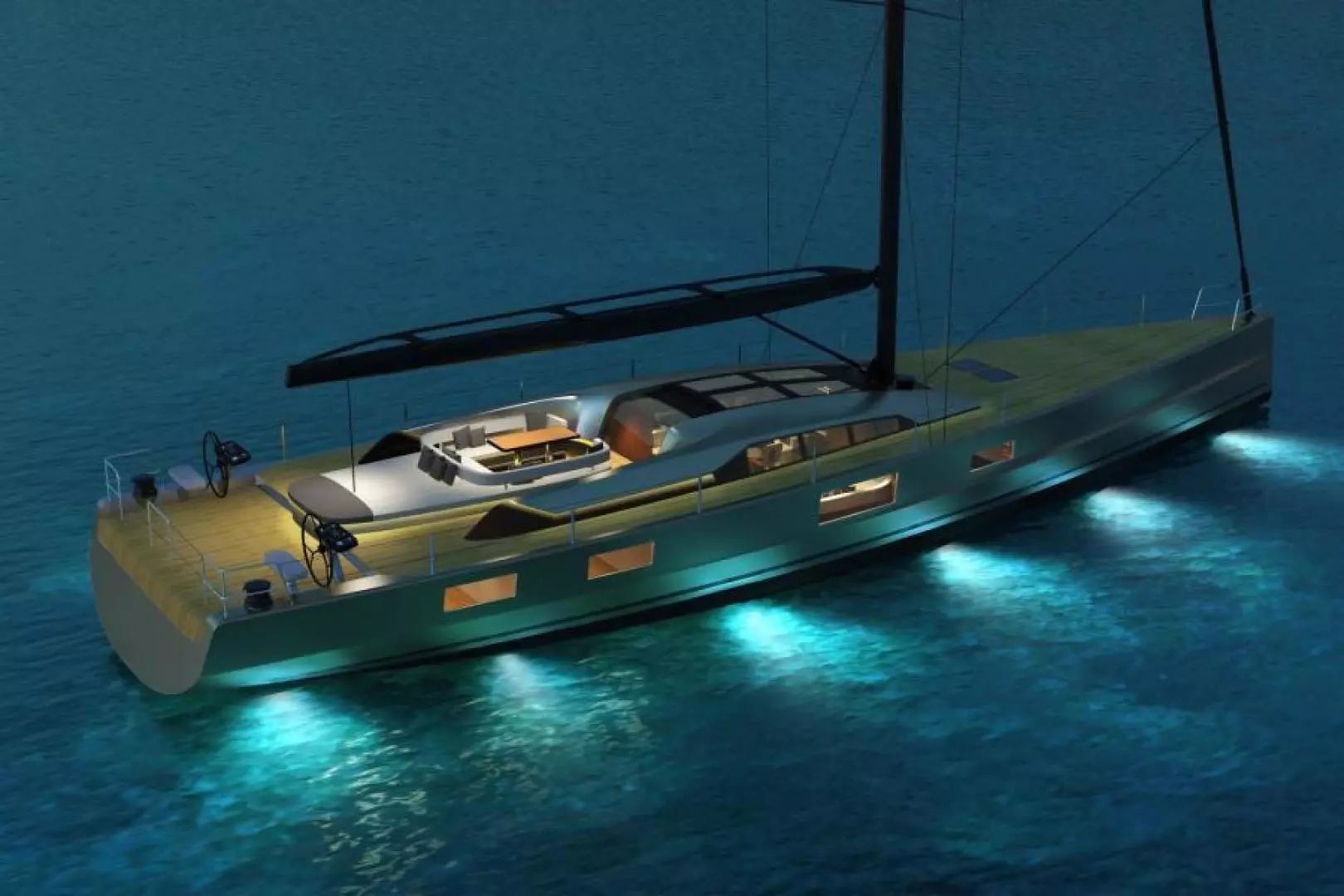

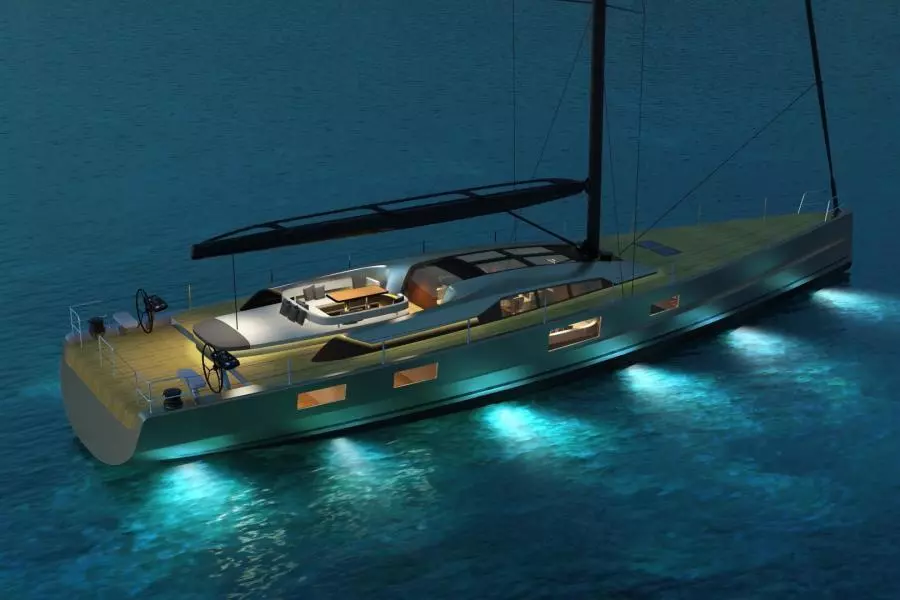

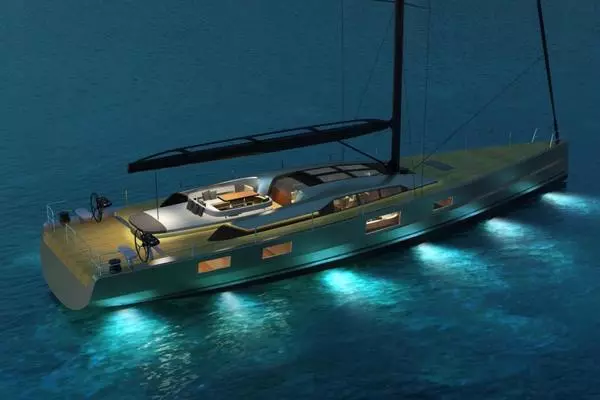

• 16 x Underwater lights
• MCB commissioning

Additional Options Below (Not Included in Price)

• Upgrade to Telescopic Keel
• Carbon hydraulic Passerelle
• Hull in metallic finish
• Cabin top in metallic finish
• Shrink wrap
